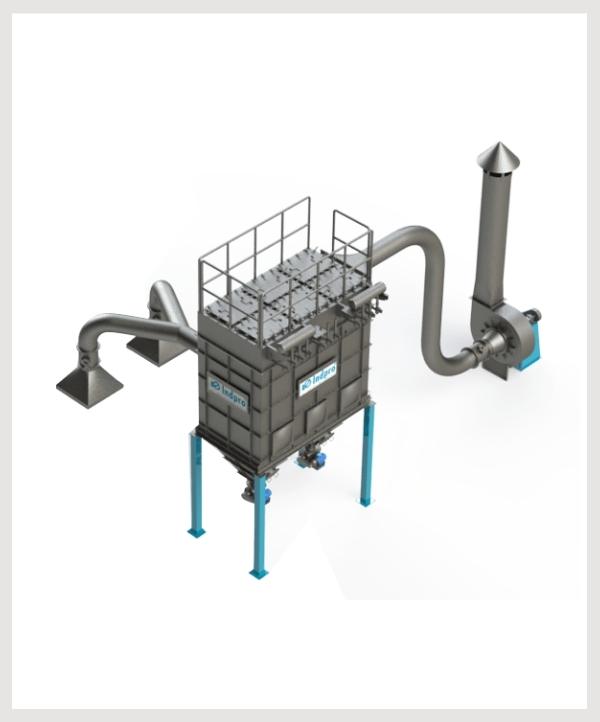

Commonly known as dust collectors.Indpro, in association with Herding Gmbh are pleased to offer a revolutionary sintered plate filter element based pulse jet filter used to separate dust particulates from fugitive dust emitting sources & process gas .

Download Leaflet

Product Features

They have a feature of continuous operation with a built-in facility for automatic regeneration of filter elements by compressed air without system shut down
This cleaning process is controlled through an electronic timer in DP mode or preset mode
They are the most efficient solution, capable of achieving emission levels as low as 0.1 mg/Nm3, with a filtration equivalence HEPA E-11, having FDA approval ideal for Product recovery
The filtration mode is “Surface Filtration” due to PTFE coating on filtration side enabling a constant air flow & pressure drop conditions
Expected filter life of several years and compact overall construction are the hallmarks of our product range
These filters are customized & can be designed for handling normal & explosive dusts
Medium like hybrid mixtures of explosive gas with explosive dusts can also be handled with constructive protection measures & several special safety features

Specifications

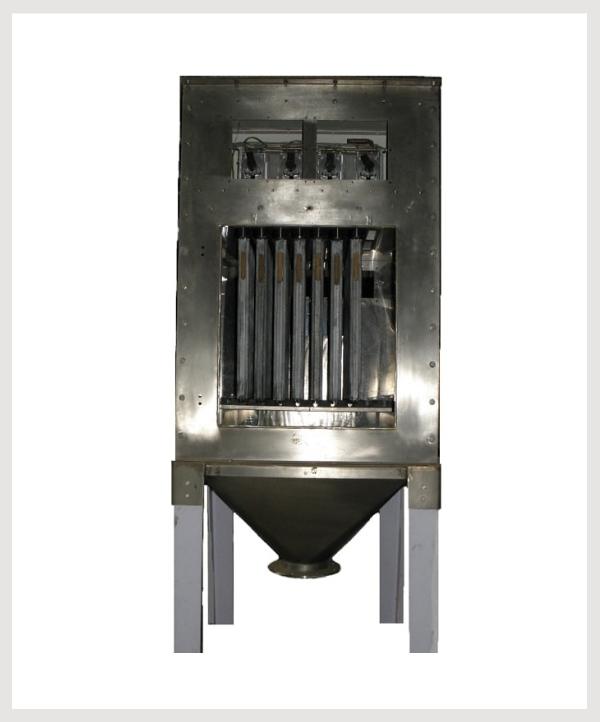

The complete mechanical assembly consists of dirt gas section & clean gas section divided by a filter mounting plate
Dirt section comprises a casing which houses filter elements & hopper with a filtered dust discharge device
The clean gas section houses assembly of blow tubes which are connected externally to an assembly of pulse valve & compressed air manifold
