Dual Tunnel Diverter Valve

Indpro's Dual Tunnel Diverter Valve is a top-of-the-line precision product used in pneumatic transport of powder and granular material, specifically designed to divert solids flowing in pneumatic conveying systems. This valve is versatile as it can be installed in both lean phase and dense phase conveying systems, making it a popular choice among various industries, such as chemical, plastic, minerals, and food manufacturing, to name a few.

This Flap Type Diverter Valve is ideal for use in a gravity flow conveying system, where the flow of dry bulk solids needs to be diverted. The valve's two-way design enables it to handle non-abrasive to abrasive powders, granular or pellets, making it a versatile addition to any conveying system. Moreover, it comes with a special hardness coating for handling abrasive materials.

Indpro's diverter valves are designed to minimize the degradation of the material during the conveying process, and the full-bore construction ensures that there is no residue or contamination left inside the valve. This makes it a hygienic and safe option for conveying materials.

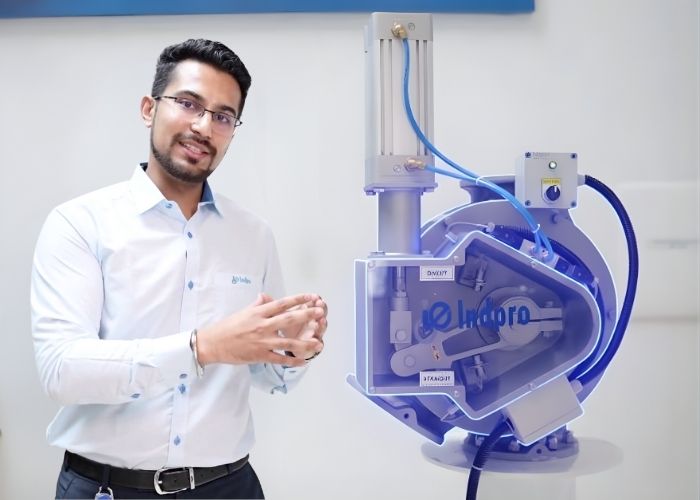

The Dual Tunnel Diverter Valve comes with an aluminum housing and contains a stainless-steel seamless plug with two pathways. The valve includes a feedback mechanism which ensures the right selection of the conveying line. The valve is easy to install and maintain, and its durability ensures that it can withstand harsh conditions and continue to operate seamlessly.

Download Leaflet

Product Features

Plug with two separate channels
Short switchover time due to two separate channels
Pneumatic actuator connected to plug through linkages
Available with either static seal (up to 3 bar(g)) or dynamic seal (up to 6 bar(g))
Plug & connectors made of stainless steel
High temperature silicon rubber seals
Available with all types of area classifications
Short changeover time

Specifications

Diverting angle: 34° - 40°
Maximum system pressure of 6 bar(g)
Maximum solids temperature of 100 °C
Available sizes: 50 NB to 200 NB
