Pneumatic Container Loading System


Pneumatic bulk container loading system provides the ability to make a 90 degree transfer of the product from a low clearance silo into the back of a marine shipping container. Indpro's container loading system is widely used for hassle free pneumatic container loading.

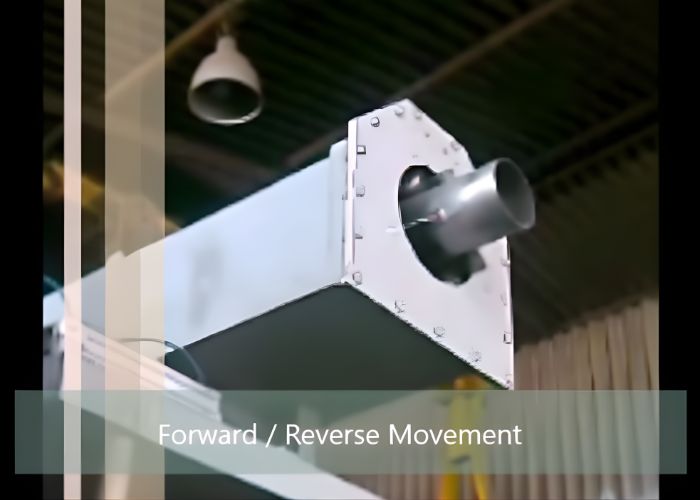

The complete system consists of starting from the upstream end, a rotary valve feeder attached to the discharge spout of a silo that doses the product into a conveying line under positive pressure created by a blower package upstream. This system best fits for pellets, granules, and powders that require maximum cleanliness. As the bulk solids material is stacked into the holder, the passing on-air and residue particles are brought into an incorporated channel beneficiary through the hole between the external extending pipe and the internal passing on the pipe.

This entire pneumatic transport of solids takes place in an enclosed conveying system to prevent the release of residue into the environment. We offer customized pneumatic container loading system according to the requirement of the customer.

For dilute phase pneumatic conveying system, air is conveyed at high velocity and low pressure, therefore the pellets, granules or powders enter the bulk container liner at high velocity but in small amounts.

For dilute phase pneumatic conveying system, air is conveyed at high pressure but low speed, therefore the pellets, granules or powders enter the bulk container liner at low speed but in big quantity batches. This method consumes the same time as dilute phase system but requires high pneumatic pressure and thus consumes more power. It is preferred though where product quality must be maintained. For powder type products, the bulk container liner is equipped with a ventilation port that returns the dust to a bag/filter house and thus the environment is kept clean.

Download Leaflet

Product Features

  • Ideal to be installed under silos with low clearance
  • Best fit for pellets, granules and powders that require maximum cleanliness
  • High efficiency in container volume usage
  • Material can be conveyed in both dilute phase as well as dense phase conveying
  • Consists of rotary valve feeder, conveying lance, blower package, compressor, air dryer and dust collection system (optional)

Specification

Vacuum type – Dilute Phase

  • Conveying Rate

    Low to High, typically from < 10 tons/hr

  • Conveying Velocity

    Typically, 3000 – 8000 fpm

  • Conveying Distance

    Up to 300 ft or longer

  • Air Mover

    Positive displacement (roots type) exhauster, or fan

  • Operating Pressure

    Up to 50% Vacuum

  • Air/Material Ratios

    > 2.0

19+years of

Automating your bulk material transfer

industrial banner
Signature

Looking for something more?

Our Pneumatic Container Loading System can very well be integrated with other system solutions we offer. You can speak with our experts to know more about how we can integrate it with our Pneumatic Conveying Systems, Air Pollution Control Systems or Bulk Solids Handling Systems.
